Gaff Lock is an innovative for full batten squared Mainsails. This simplify Mainsail handling for an easy folding of the mainsail.
GAFF LOCKS = AUTO-LOCKING for FULL MAINSAILS
⊕ Catamaran over 40’ ( F30/ F40)
⊕ Squared mainsail automatically locked
⊕ Mainsail easily folded
⊕ Simple use : long top batten simply hoisted and lowered along side the boom
FUNCTIONNING :
GAFF LOCK MODELS & FEATURES
| GAFF LOCK Model Modèle GAFF LOCK | Max. Load (t) Charge max.(t) | Description | Reference Référence |
|---|---|---|---|

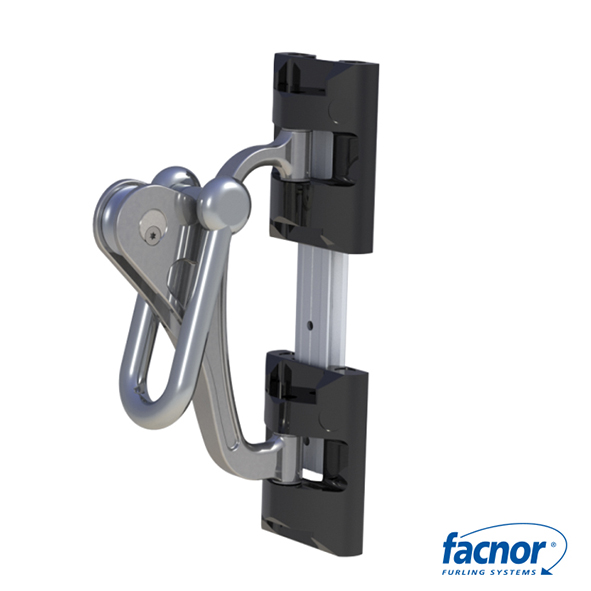

| FT-GL 30 | 2T5 | F30 Gaff Lock Headboard car F30 Chariots de têtière Gaff Lock | 54041400650 |
| FT-GL 40 | 4T5 | F40 Gaff Lock Headboard car F40 Chariots de têtière Gaff Lock | 54041400700 |
| GAFF LOCK / FACSLIDE RETROFIT |
|||

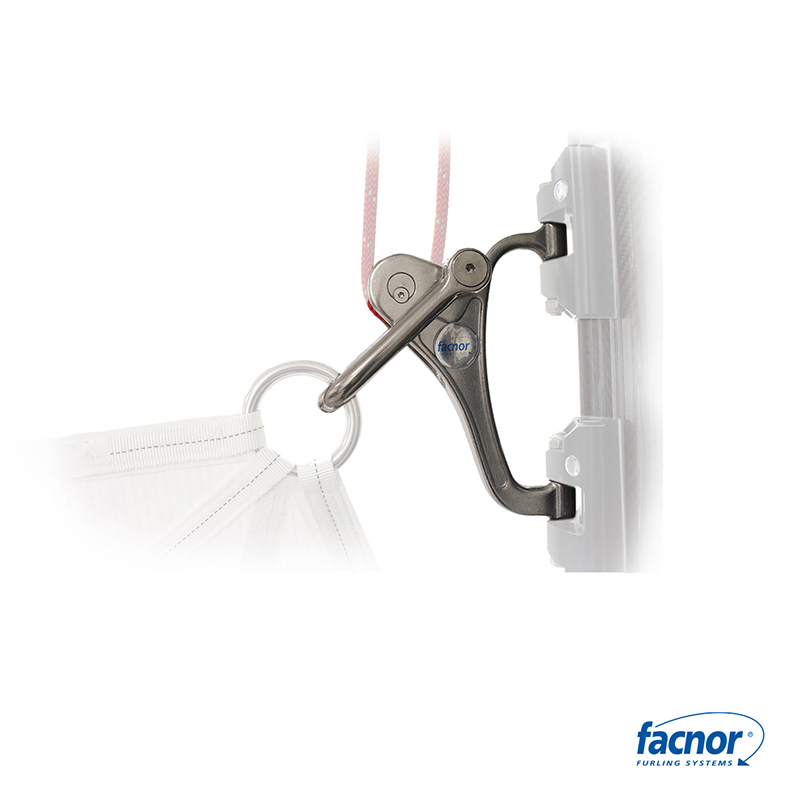

| FT-GL 30 NU | 2T5 | F30 Gaff Lock toggle retrofit F30 cardan Gaff Lock retroft | 54044300600 |
| FT-GL 40 NU | 4T5 | F40 Gaff Lock toggle retrofit F40 cardan Gaff Lock retroft | 54044400600 |
OVERVIEW & DETAILS
GENERAL VIEW
INSTALLATION
TECHNICAL DATAS
